    Reverse osmosis membrane 4040 Low pressure membrane Original genuine Huitong RO membrane Industrial equipment Pure water

    Ask Lasest Price
    Brand Name : QRZ
    Model Number : 4040/8040
    Certification : ISO9001
    Price : ¥1200-¥3000
    Payment Terms : D/P, T/T
    Supply Ability : 100 units/day
    Delivery Time : 1-2weeks
    • Product Details
    • Company Profile

    Reverse osmosis membrane 4040 Low pressure membrane Original genuine Huitong RO membrane Industrial equipment Pure water

    Advanced 4040 RO Membrane Cell for Seawater Desalination and Brackish Water Treatment
    Reverse osmosis membrane 4040 Low pressure membrane Original genuine Huitong RO membrane Industrial equipment Pure water
    Company Profile
    Beijing Qinrunze Environmental Protection Technology Co.,Ltd (QRZ), established in 2009, is a integrated solution provider in the field of water treatment, covering landfill leachate treatment, food waste treatment, industrial waste water treatment, sanitary waste treatment, mine waste water treatment. Business scope of QRZ encompasses the whole process of water treatment, ranging from engineering design, equipment manufacture, installation & commissioning, project contracting to entrusted operation. QRZ is capable of producing Membrane Bioreactor (MBR), Ultrafiltration (UF), Nanofiltration (NF), Reverse Osmosis (RO), Disc Tube Reverse Osmosis (DTRO), A/O Unit and the associated equipment, unit and accessories.
    Reverse osmosis membrane 4040 Low pressure membrane Original genuine Huitong RO membrane Industrial equipment Pure water
    Product Description

    Brief Introduction of 4040 RO Membrane Element

    ME-4040FR Reverse Osmosis Membrane Element is a type of fouling resistant membrane manufactured by our company. With good quality and competitive price, ME-4040FR membrane module is ideal replacement international famous brands.
    Reverse osmosis membrane 4040 Low pressure membrane Original genuine Huitong RO membrane Industrial equipment Pure water
    Try before buy. Free sample is available for your test. The clients can place trial order for 3~6 months test. We are confident of the performance of ME-4040 membrane elements.
    Product Structure
    Reverse osmosis membrane 4040 Low pressure membrane Original genuine Huitong RO membrane Industrial equipment Pure water
    4040 RO Fouling Resistant Reverse Osmosis Element Structure
    4040 RO membrane Element is mainly consisting of membrane housing--a kind of pressure vessel made of FRP or stainless steel; spiral would membrane film, connector, seals and the like.
    Specification
    Key Performance
    Model
    ME-4040FR
    ME-4040HR
    ME-4040SW
    Permeate Flow Rate
    2,200 GPD (8.3 m³/d)
    2,200 GPD (8.3 m³/d)
    1,600 GPD (6.1m³/d)
    Stable Salt Rejection
    90 square feet (8.4 ㎡)
    90 square feet (8.4 ㎡)
    95 square feet (8.8 ㎡)
    Effective Membrane Area
    90 square feet (8.4 ㎡)
    90 square feet (8.4 ㎡)
    95 square feet (8.8 ㎡)
    Feed Spacer Width
    34mil
    28mil
    28mil
    Test Condition
    Test Pressure
    225psi (1.55MPa)
    225psi (1.55MPa)
    800psi (5.52MPa)
    Test Solution
    2000mg/L NaCl
    2000mg/L NaCl
    32000mg/L NaCl
    Test Temperature
    25℃ (77℉)
    25℃ (77℉)
    25℃ (77℉)
    PH
    7.0±0.5
    7.0±0.5
    8
    Recovery Rate
    15%
    15%
    8%
    Operation Condition
    Max. Operation Pressure
    600psi (4.14MPa)
    600psi (4.14MPa)
    1200psi (8.28MPa)
    Max. Feed Rate
    16 GPM ( 3.6m³/h )
    16 GPM ( 3.6m³/h )
    16 GPM ( 3.6m³/h )
    Max. Feed Water Temperature
    45℃(113℉
    45℃(113℉
    45℃(113℉
    Max. Feed Water SDI
    5
    5
    5
    Free Chlorine
    <0.1mg/L
    <0.1mg/L
    <0.1mg/L
    Max. Pressure Drop
    15psi (0.1MPa) for single membrane module
    15psi (0.1MPa) for single membrane module
    15psi (0.1MPa) for single membrane module
    Cleaning PH
    1~13
    1~13
    1~13
    Operation PH
    2~11
    2~11
    2~11
    Main Application
    * Drinking and potable water purification
    * Seawater Desalination
    * Brackish Water Desalination
    * Boiler Replenishment Water Treatment
    * Water Reuse
    * Concentration of value-added solution in beverage and pharmaceutical
    Packing & Delivery

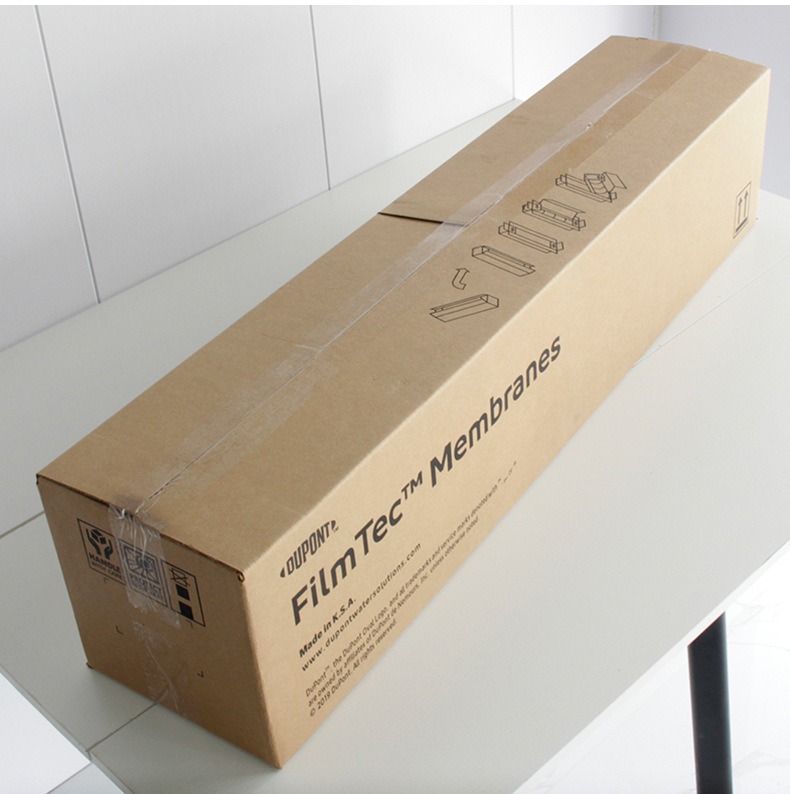

    Generally, package of ME-4040 membrane elements are packed in paper box or cartoon for container shippment
    FAQ
    1. HOW TO SELECT MEMBRANE TYPE?
    i) Check the model and size of your membrane module to be replaced;
    ii)Consult our engineer for free.


    2. DO YOU OFFER OEM or ODM?
    Yes, we are a manufacturer offer customized design and manufacture.

    3. DO YOU HAVE MINIMAL ORDER QUANTITY?
    Yes. Typically MOQ is 1 pcs.

    4. HOW ABOUT THE CERTIFICATES?
    Quality certificate and test report are available.

    5. HOW ABOUT YOUR AFTER-SALE SERVICE?
    7x24 hot line services.
